VẬT LIỆU LỌC SÀN PHÂN TỬ CMS MÁY PSA

(1 đánh giá)

Mã sản phẩm : CMS

Xuất xứ : CHINA

Bảo hành : 1 năm

CARBON MOLECULAR SIEVES(CMS) Diameter 1.4-1.6mm Bulk Density 670-690g/l Adsorption Rate 2*45s Crush Strength ≥100N

Giá sản phẩm : Call: 0919-243-248

Chi tiết

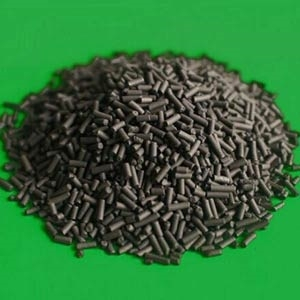

CARBON MOLECULAR SIEVES(CMS) & NITROGEN GAS GENERATOR

Carbon molecular sieve is a material containing tiny pores of a precise and uniform size that is used as an adsorbent for gases.

PSA Nitrogen Generation Process
1. Air Feed System
The environmental air supplied to the PSA system should be compressed and purified to get rid of the dust, the oil and water.

2. PSA Nitrogen Generation System
While the compressed and purified air flows through the adsorbent bed with CMS inside in a bottom up way under the pressure of 0.6MPa, the oxygen molecules will be adsorbed by the solid surfaces of the CMS, and the enriched nitrogen will be output from the top of the bed to the container

SPECIFICATION

Diameter		1.4-1.6mm
Bulk Density		670-690g/l
Adsorption Rate		2*45s
Crush Strength		≥100N
Type	Adsorbent pressure	Purity of Nitrogen	Rate of Nitrogen Prodution	Nitrogen Recovery Rate N2 (%)
Type	(Mpa)	N2 (%)	N2 (m3/h.t)	Nitrogen Recovery Rate N2 (%)
CMS-185	0.8	99.99	58	2.1
		99.9	115	3.1
		99.5	185	4.0
		99.0	245	4.5
		98.0	300	4.6
		97.0	355	4.8
CMS-200	0.8	99.99	80	2.1
		99.9	130	3.1
		99.5	200	4.0
		99	275	4.5
		98	325	4.6
		97	330	4.8
CMS-220	0.8	99.99	100	2.1
		99.9	150	3.1
		99.5	220	4.0
		99	280	4.5
		98	335	4.6
		97	350	4.8
CMS-240	0.8	99.99	110	2.1
		99.9	170	3.1
		99.5	240	4.0
		99	305	4.5
		98	365	4.6
		97	380	4.8
CMS-260	0.8	99.99	120	2.8
		99.90	175	3.6
		99.50	260	4.6
		99.00	320	5.3
